Stroke Load Reduction | Autoclavable | Micropipette

Nichipet Air

  • Autoclavable
  • CE
Dream Bank Point
1pt
Nichipet Air

Specifications

Cat. No Volume Setting Volume range(μL) Increments(μL) Usable tips Color
00-NAR-2 Digital Setting 0.1~2 0.002 BMT2-UT / UTWR / UTWRB,
FUT / FUTRB
Gray
00-NAR-10 0.5~10 0.01 Pink
00-NAR-20 2~20 0.02 BMT2-SG / SGR / SGRB,
FSG / FSGRB
Cream
00-NAR-100 10~100 0.1 BMT2-SG / SGR / SGRB,
FSE / FSERB
Orange
00-NAR-200 20~200 0.2 BMT2-SG / SGR / SGRB,
FAG / FAGRB
Yellow
00-NAR-1000 100~1000 1 BMT2-LG / LGR / LGRB,
FLG / FLGRB
Blue
00-NAR-5000 500~5000 5 BMT2-X / XR / XRB Green
00-NAR-10000 1000~10000 10 BMT2-ZS / ZSR / ZSRB White

Exclusive tip for 00-NAR-10000.

AC & CV

Cat. No Volume (μL) Accuracy (%) Precision (%)
00-NAR-2 0.2 ±12.0 ≦6.0
1 ±2.5 ≦1.5
2 ±1.4 ≦0.7
00-NAR-10 1 ±2.5 ≦1.8
5 ±1.5 ≦0.8
10 ±1.0 ≦0.4
00-NAR-20 2 ±3.0 ≦1.5
10 ±1.2 ≦0.6
20 ±1.0 ≦0.3
00-NAR-100 10 ±3.0 ≦1.0
50 ±1.0 ≦0.3
100 ±0.8 ≦0.2
00-NAR-200 20 ±1.8 ≦0.7
100 ±1.0 ≦0.3
200 ±0.6 ≦0.2
00-NAR-1000 100 ±1.0 ≦0.6
500 ±0.8 ≦0.2
1000 ±0.6 ≦0.2
00-NAR-5000 500 ±2.0 ≦0.6
2500 ±0.7 ≦0.25
5000 ±0.5 ≦0.15
00-NAR-10000 1000 ±2.0 ≦0.6
5000 ±0.8 ≦0.2
10000 ±0.5 ≦0.15

* The Accuracy and Precision at 0.2μL or less of 2μL model depend much on the operator’ s skill.

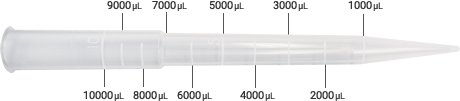

Tip for 10000μL

Cat. No Volume range(μL) Specification Q'ty(box) Material Color Increments Usable models
00-BMT2-ZS 1000~10000 Bulk tip 200pcs PP Natural 1000μL 00-NAR-10000
00-BMT2-ZSR Racked tip 80spcs
(40pcs.×2sc/s)
00-BMT2-ZSRB Racked tip
(sterilized)

* Tip ejection & attachment is much easier than before.

00-BMT2-ZS

Stands

Cat. No Storing capacity
00-NAR-STD 8pcs
  • Can be used for Nichipet Premium series and NICHIRYO Le.
  • Can be mounted on the stand with attaching a tip (only for Nichipet Air).
  • *Will be launched in October or later
  • *The image is prototype

Nozzle filter

Usable models Cat. No Q'ty
5000μL 00-NAR-F15000 10
10000μL

Volume adjustment tool

Cat. No Q'ty
00-NAR-AT 1

Grease

Cat. No Q'ty
00-NAR-GRS 1
