| Volume | Code | Replaced parts name | Q'ty | Remarks |
|---|---|---|---|---|

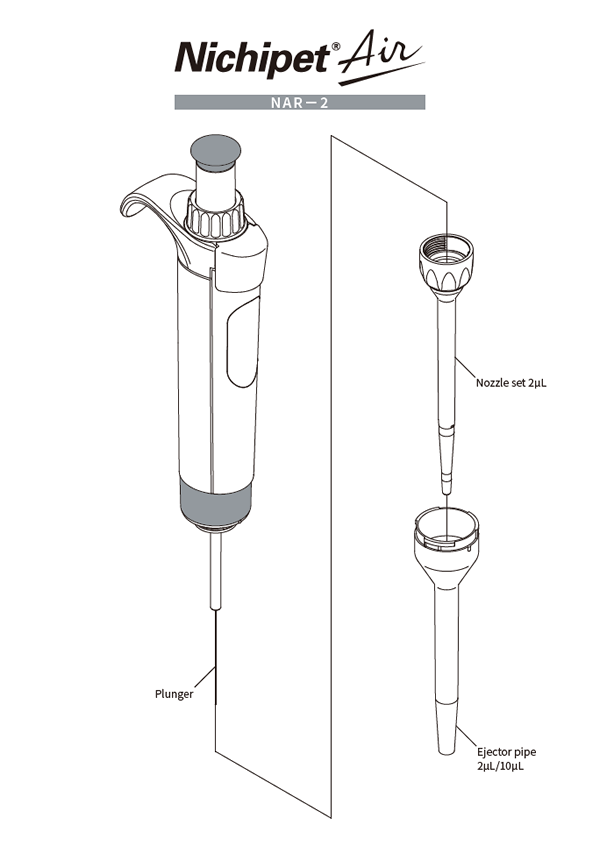

| NAR-2 | 00-NAR-ABC2 | Nozzle cylinder set 2µL | 1 | O-ring and O-ring retainer included |
| 00-NAR-E10 | Ejector pipe 2µL | 1 | ||

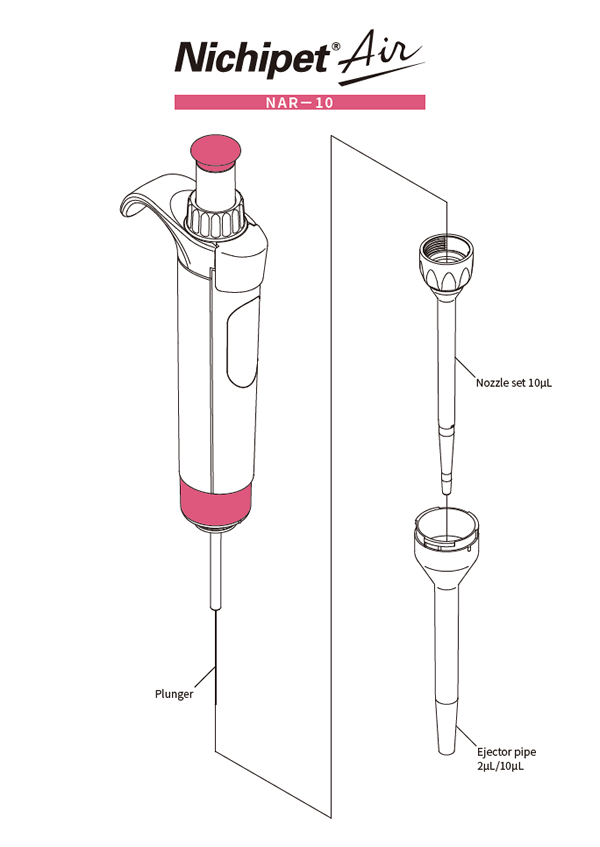

| NAR-10 | 00-NAR-ABC10 | Nozzle cylinder set 10µL | 1 | O-ring and O-ring retainer included |
| 00-NAR-E10 | Ejector pipe 10µL | 1 | ||

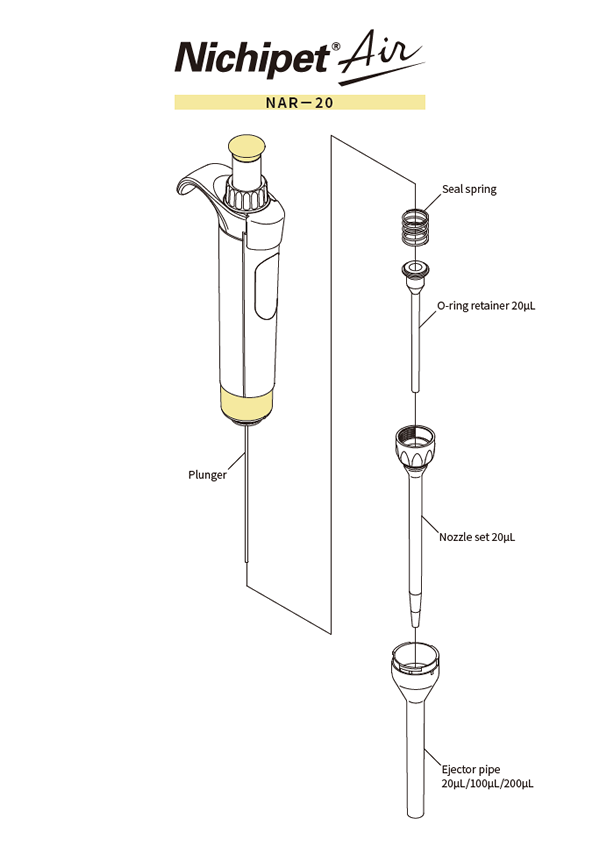

| NAR-20 | 00-NAR-A20 | Nozzle cylinder set 20µL | 1 | |
| 00-NAR-B20 | O-ring 20µL | 1 | ||
| 00-NAR-C20 | O-ring retainer 20µL | 1 | ||
| 00-NAR-G1000 | Seal spring | 1 | ||
| 00-NAR-E200 | Ejector pipe 20µL | 1 | ||

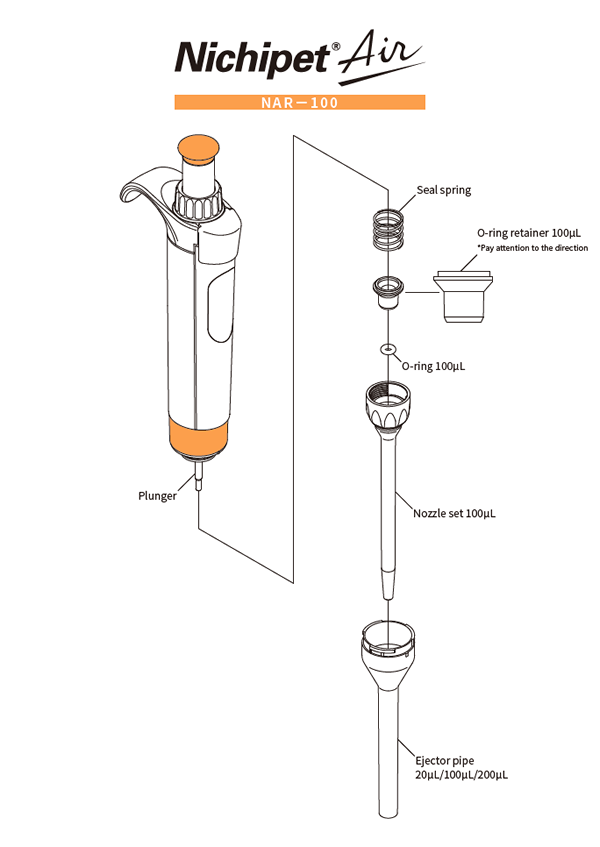

| NAR-100 | 00-NAR-A100 | Nozzle cylinder set 100µL | 1 | |
| 00-NAR-B100 | O-ring 100µL | 1 | ||
| 00-NAR-C100 | O-ring retainer 100µL | 1 | ||
| 00-NAR-G1000 | Seal spring | 1 | ||
| 00-NAR-E200 | Ejector pipe 100µL | 1 | ||

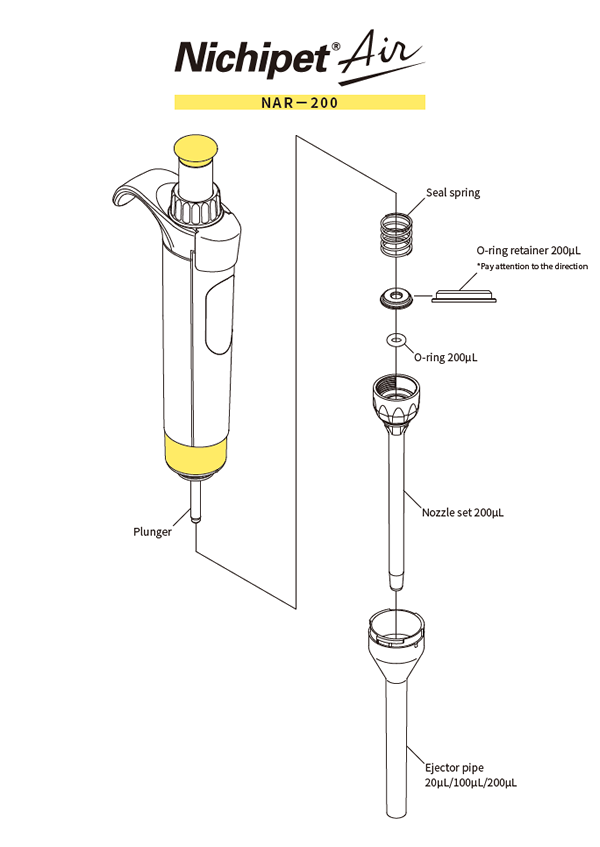

| NAR-200 | 00-NAR-A200 | Nozzle cylinder set 200µL | 1 | |
| 00-NAR-B200 | O-ring 200µL | 1 | ||
| 00-NAR-C200 | O-ring retainer 200µL | 1 | ||
| 00-NAR-E200 | Ejector pipe 200µL | 1 | ||
| 00-NAR-G1000 | Seal spring | 1 | ||

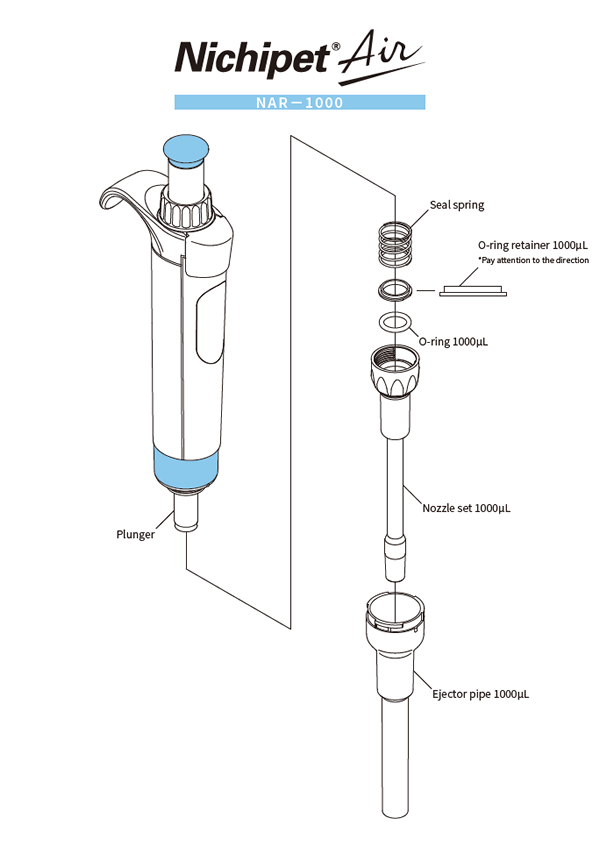

| NAR-1000 | 00-NAR-A1000 | Nozzle cylinder set 1000µL | 1 | |
| 00-NAR-B1000 | O-ring 1000µL | 1 | ||
| 00-NAR-C1000 | O-ring retainer 1000µL | 1 | ||
| 00-NAR-E1000 | Ejector pipe 1000µL | 1 | ||
| 00-NAR-G1000 | Seal spring | 1 | ||

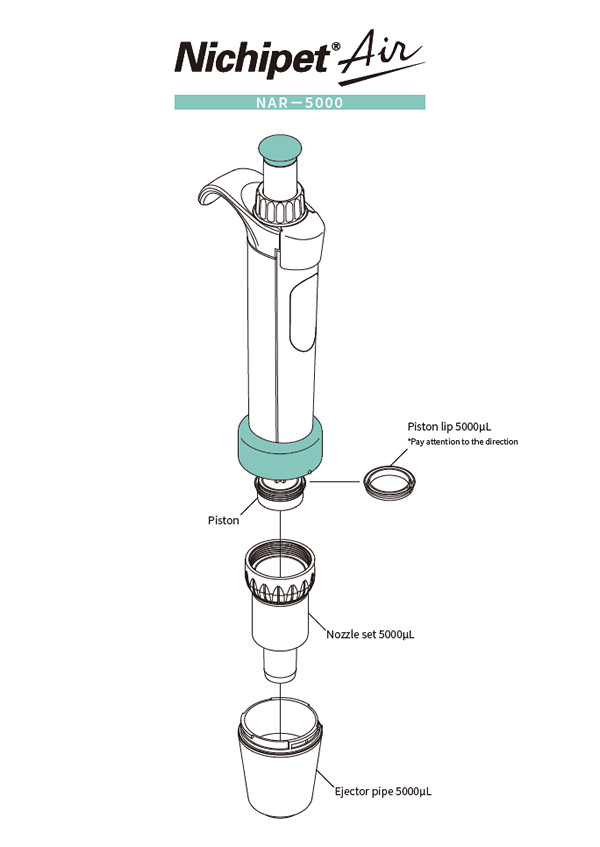

| NAR-5000 | 00-NAR-A5000 | Nozzle cylinder set 5000µL | 1 | |
| 00-NAR-B5000 | Piston lip 5000µL | 1 | ||
| 00-NAR-E5000 | Ejector pipe 5000µL | 1 | ||
| 00-NAR-F15000 | Nozzle filter (10pcs) | 1 | ||

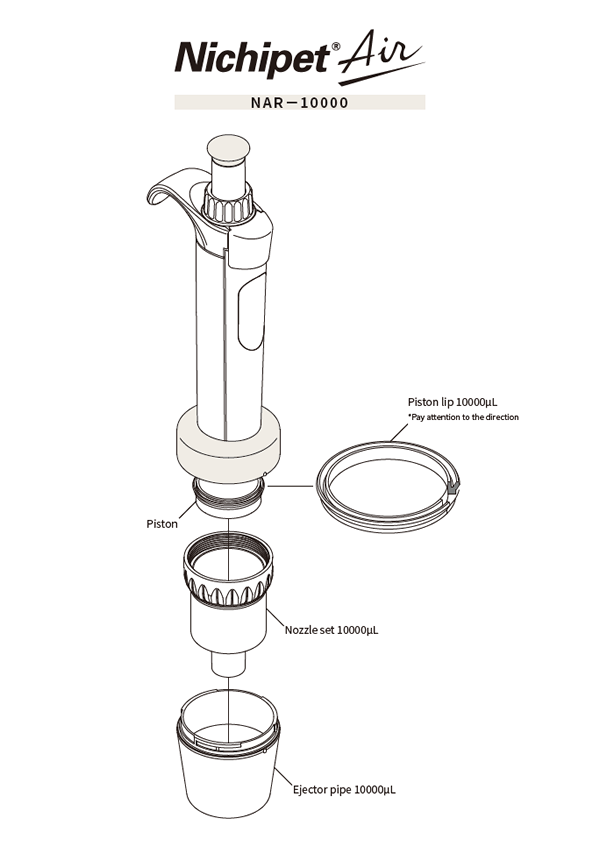

| NAR-10000 | 00-NAR-A10000 | Nozzle cylinder set 10000µL | 1 | |
| 00-NAR-B10000 | Piston lip 10000µL | 1 | ||
| 00-NAR-E10000 | Ejector pipe 10000µL | 1 | ||
| 00-NAR-F15000 | Nozzle filter (10pcs) | 1 | ||
| All models | 00-NAR-GRS | Grease | 1 | |
| 00-NAR-AT | Volume adjustment tool | 1 |
* For Models: 5000μL and 10000μL, remove the nozzle filter before autoclaving.
