PIPETTE / DISPENSER / CUSTOM MADE & OEM
PIPETTE / DISPENSER / CUSTOM MADE & OEM
When the image is clicked, the expansion image is displayed.
*Not compatible with nozzle filters for NPX2-1000, 5000, or 10000 models, and vice versa.
| Volume | Code | Replaced parts name | Q'ty | Remarks |
|---|---|---|---|---|

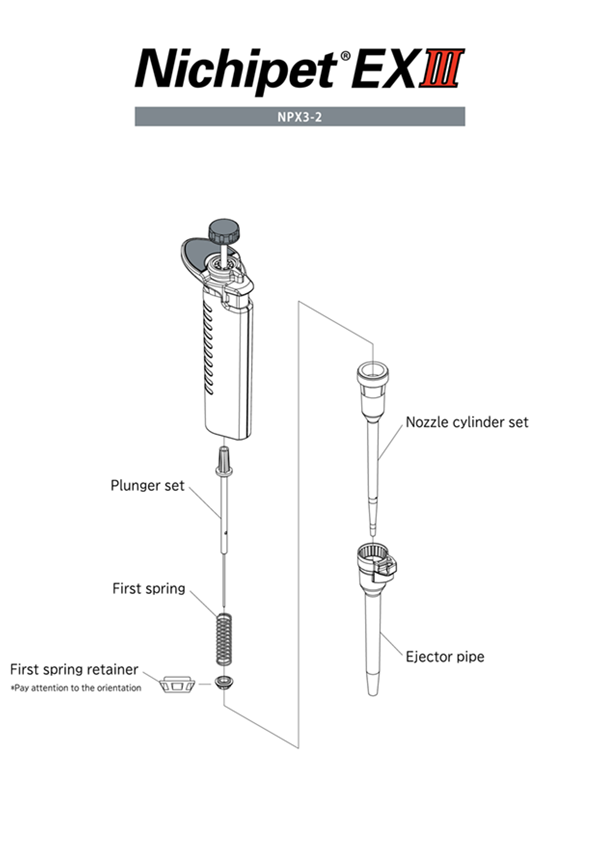

| NPX3-2 | 00-NX3-DK2 | First spring set 2µL | 1 | First spring and First spring retainer included |
| 00-NX3-ABC2 | Nozzle cylinder set 2µL | 1 | Nozzle cylinder, O-ring, and O-ring retainer included (pre-assembled) | |
| 00-NX3-E2 | Ejector pipe 2µL | 1 | ||

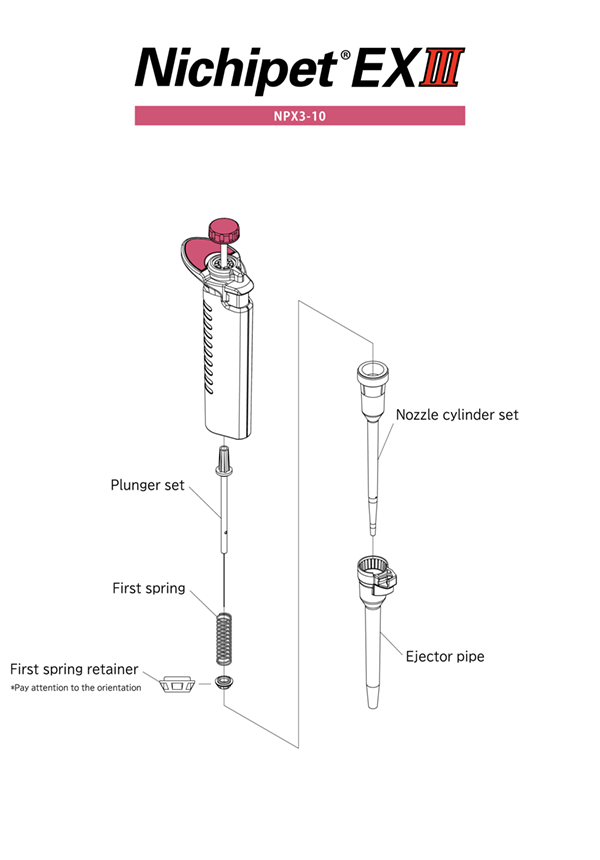

| NPX3-10 | 00-NX3-DK10 | First spring set 10µL | 1 | First spring and First spring retainer included |
| 00-NX3-ABC10 | Nozzle cylinder set 10µL | 1 | Nozzle cylinder, O-ring, and O-ring retainer included (pre-assembled) | |
| 00-NX3-E10 | Ejector pipe 10µL | 1 | ||

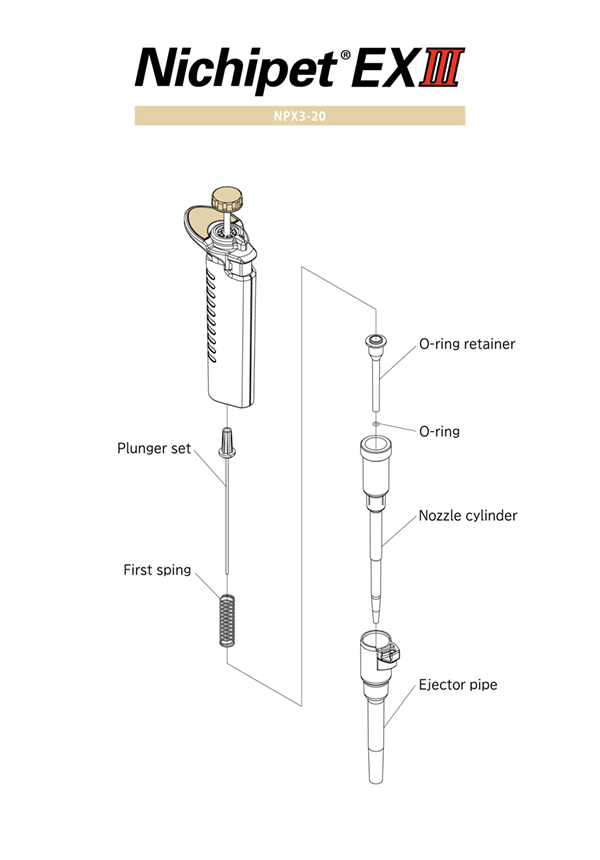

| NPX3-20 | 00-NX3-D20 | First spring 20µL | 1 | |
| 00-NX3-A20 | Nozzle cylinder 20µL | 1 | ||
| 00-NX3-BC20 | O-ring set 20µL | 1 | O-ring and O-ring retainer included | |
| 00-NX3-E20 | Ejector pipe 20µL | 1 | ||

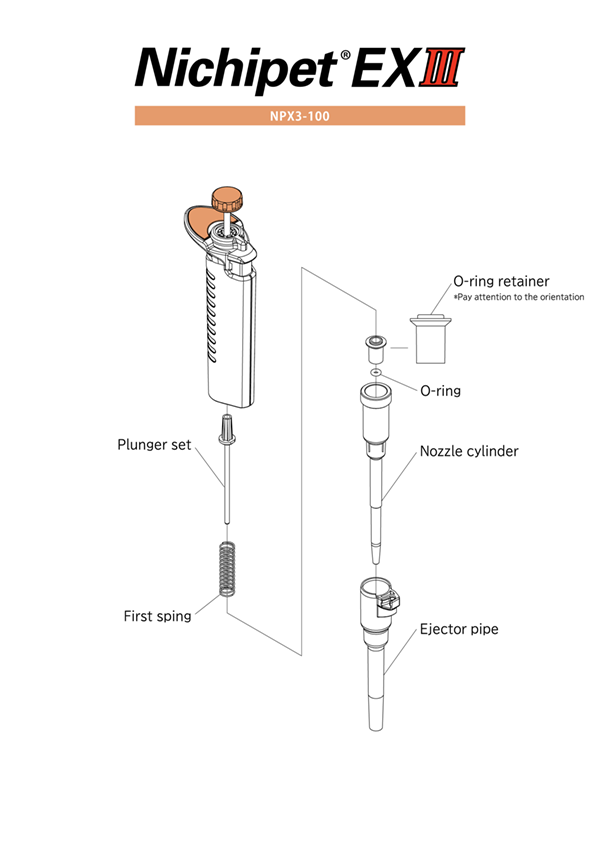

| NPX3-100 | 00-NX3-D100 | First spring 100µL | 1 | |
| 00-NX3-A100 | Nozzle cylinder 100µL | 1 | ||
| 00-NX3-BC100 | O-ring set 100µL | 1 | O-ring and O-ring retainer included | |
| 00-NX3-E100 | Ejector pipe 100µL | 1 | ||
| NPX3-200 | 00-NX3-DK200 | First spring set 200µL | 1 | First spring and First spring retainer included |
| 00-NX3-A200 | Nozzle cylinder 200µL | 1 | ||
| 00-NX3-BCG200 | O-ring set 200µL | 1 | O-ring, O-ring retainer, and Seal spring included | |
| 00-NX3-E200 | Ejector pipe 200µL | 1 | ||

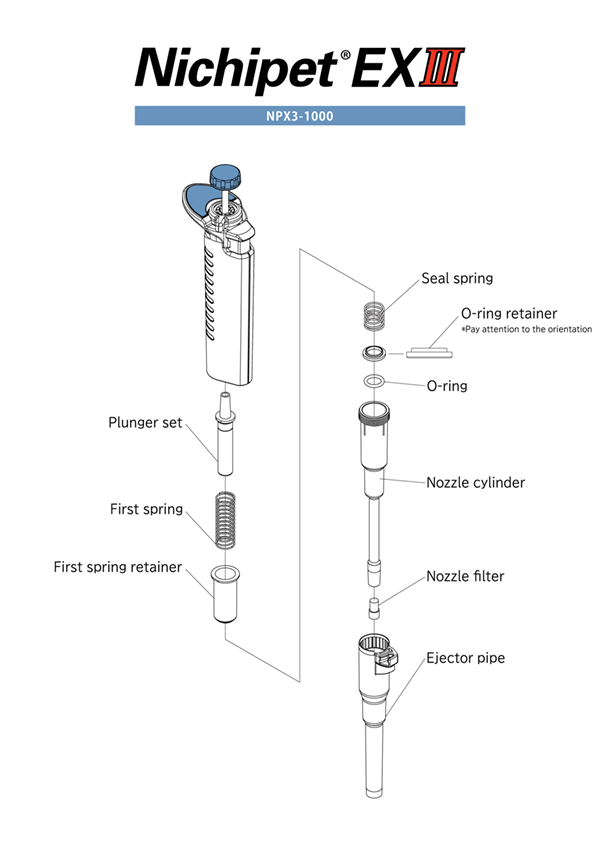

| NPX3-1000* | 00-NX3-DK1000 | First spring set 1000µL | 1 | First spring and First spring retainer included |
| 00-NX3-A1000 | Nozzle cylinder 1000µL | 1 | ||
| 00-NX3-BCG1000 | O-ring set 1000µL | 1 | O-ring, O-ring retainer, and Seal spring included | |
| 00-NX3-E1000 | Ejector pipe 1000µL | 1 | ||
| 00-NX3-F1000 | Nozzle filter 1000µL | 1 | 10pcs | |

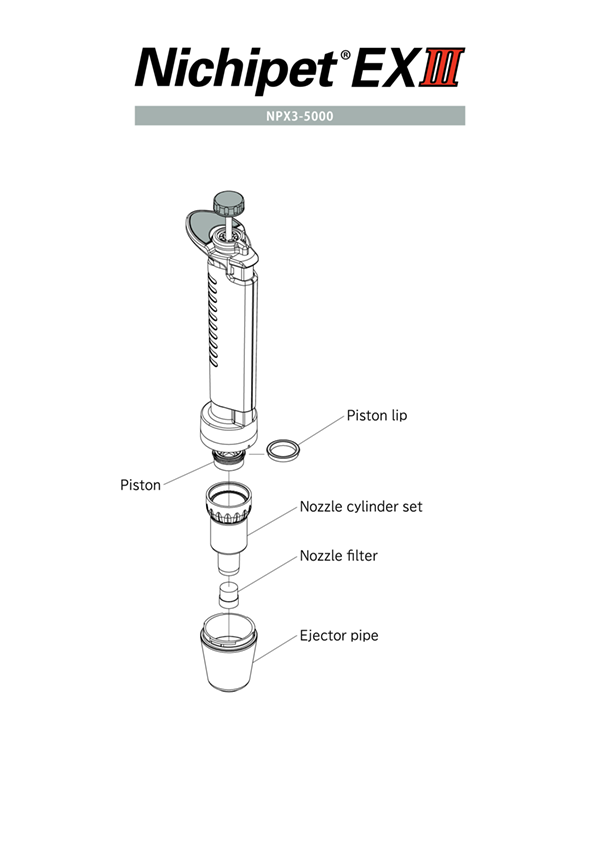

| NPX3-5000* | 00-NX3-A5000 | Nozzle cylinder set 5000µL | 1 | |
| 00-NX3-E5000 | Ejector pipe 5000µL | 1 | ||
| 00-NX3-F15000 | Nozzle filter 5000/10000µL | 1 | 10pcs | |

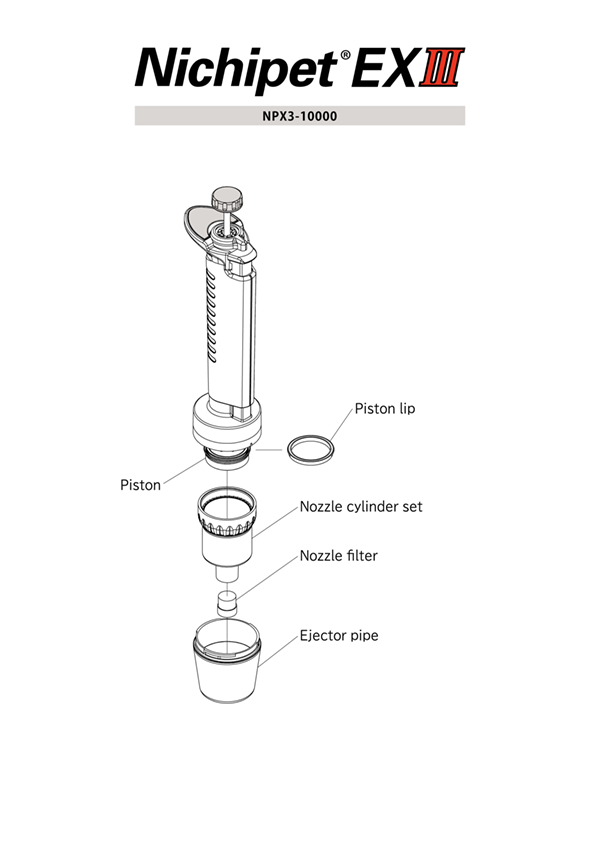

| NPX3-10000* | 00-NX3-A10000 | Nozzle cylinder set 10000µL | 1 | |
| 00-NX3-E10000 | Ejector pipe 10000µL | 1 | ||
| 00-NX3-F15000 | Nozzle filter 5000/10000µL | 1 | 10pcs | |
| All models | 00-NX3-GRS | Grease | 1 |
* For Models: 1000μL ,5000μL and 10000μL, remove the nozzle filter before autoclaving.
